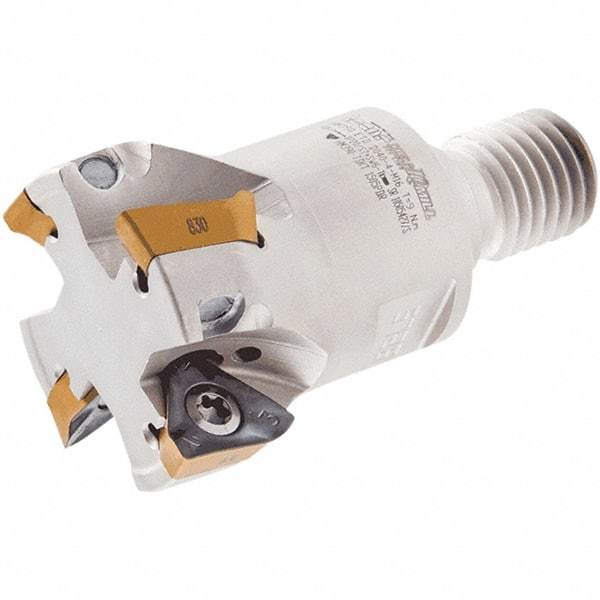

Iscar - 1" Cut Diam, 0.315" Max Depth of Cut, 3/4" Shank Diam, 3.38" OAL, Indexable Square Shoulder Helical End Mill - HM390 TPKT 1003PDR Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series HeliIQMill
Item #: 45577293
Brand: Iscar
Model #: 3106999
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.3800 |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | HM390 ETP-10 |
| Head Length (Decimal Inch) | 1.3500 |
| Weldon Flat | Yes |
| Insert Compatibility | HM390 TPKT 1003PDR |
| Shank Length (Decimal Inch) | 2.0300 |
