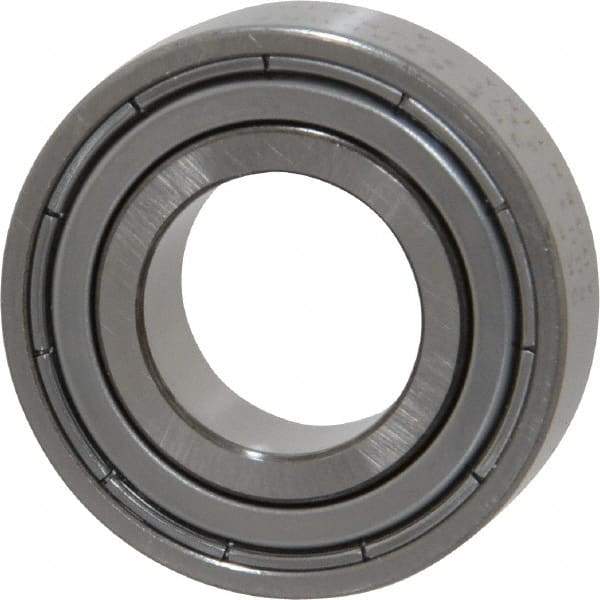

SKF - 17mm Bore Diam, 35mm OD, Double Shield Deep Groove Radial Ball Bearing - 10mm Wide, 1 Row, Round Bore, 3,250 Nm Static Capacity, 6,370 Nm Dynamic Capacity
Item #: 45666807
Brand: SKF
Model #: 6003 2ZJEM
Exact Tooling IR#: 04
Features and Benefits
Deep groove ball bearings are used for high and very high speeds in operations, requiring little maintenance. They are designed with balls rolling between an inner and outer raceway. They are commonly used in pumps, gear motors and electric motors.
Double shield refers to two shields, one on each side of the bearing. The shield is located on the outer race does not make contact with the inner race. Ideal for very high speeds, but does not prevent smaller contaminants from entering the bearing. They are more economical than seals.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Deep Groove |
| Style | Double Shield |
| Bore Diameter (mm) | 17.00 |
| Outside Diameter (mm) | 35.00 |
| Outside Diameter (Decimal Inch) | 1.3800 |
| Width (Decimal Inch) | 0.3900 |
| Width (mm) | 10.00 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Housing Material | Steel |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Nm) | 3250 |
| Dynamic Load Capacity (Nm) | 6370 |
| ABEC Scale | ABEC-3 |
| Maximum RPM | 22000 |
