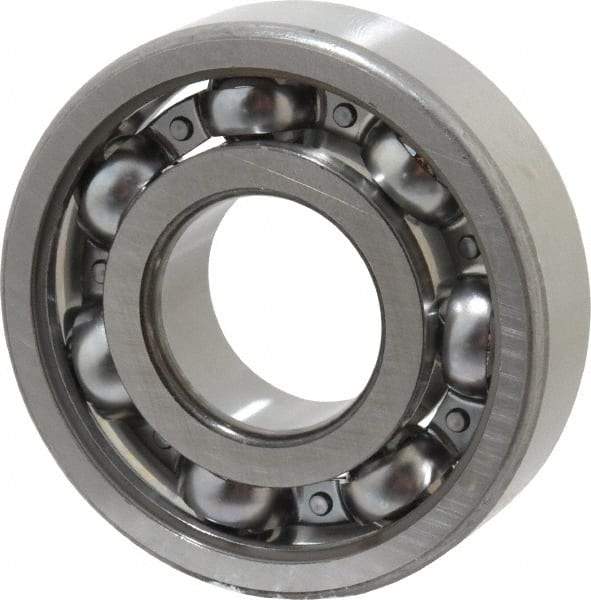

SKF - 25mm Bore Diam, 62mm OD, Open Deep Groove Radial Ball Bearing - 17mm Wide, 1 Row, Round Bore, 11,600 Nm Static Capacity, 23,400 Nm Dynamic Capacity
Item #: 45668167
Brand: SKF
Model #: 6305 JEM
Exact Tooling IR#: 04
Features and Benefits
Deep groove ball bearings are used for high and very high speeds in operations, requiring little maintenance. They are designed with balls rolling between an inner and outer raceway. They are commonly used in pumps, gear motors and electric motors.
Open Bearing design without seals or shields and are intended to be lubricated in place and periodically maintained
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Deep Groove |
| Style | Open |
| Bore Diameter (mm) | 25.00 |
| Outside Diameter (mm) | 62.00 |
| Outside Diameter (Decimal Inch) | 2.4400 |
| Width (Decimal Inch) | 0.6700 |
| Width (mm) | 17.00 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Housing Material | Steel |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Nm) | 11600 |
| Dynamic Load Capacity (Nm) | 23400 |
| ABEC Scale | ABEC-3 |
| Maximum RPM | 16000 |
