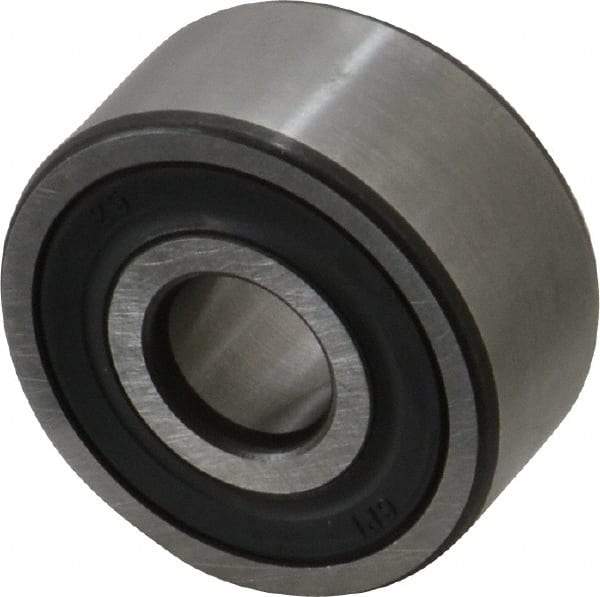

SKF - 10mm Bore Diam, 30mm OD, Double Seal Angular Contact Radial Ball Bearing - 14mm Wide, 2 Rows, Round Bore, 4,300 Lb Static Capacity, 7,610 Lb Dynamic Capacity
Item #: 45671930
Brand: SKF
Model #: 3200 A-2RS1TN9
Exact Tooling IR#: 04
Features and Benefits
Double Seal Bearings are factory lubricated with oil or grease and designed to retain lubricants while keeping contaminates out. The seal is on each side of the bearing and is located on the outer race making some contact with the inner race.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Angular Contact |
| Style | Double Seal |
| Bore Diameter (mm) | 10.00 |
| Outside Diameter (mm) | 30.00 |
| Outside Diameter (Decimal Inch) | 1.1800 |
| Width (Decimal Inch) | 0.5500 |
| Width (mm) | 14.00 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Contact Angle | 30 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 4300 |
| Dynamic Load Capacity (Lb.) | 7610 |
| Cage Material | Glass fiber reinforced polyamide |
| Maximum RPM | 16000 |
