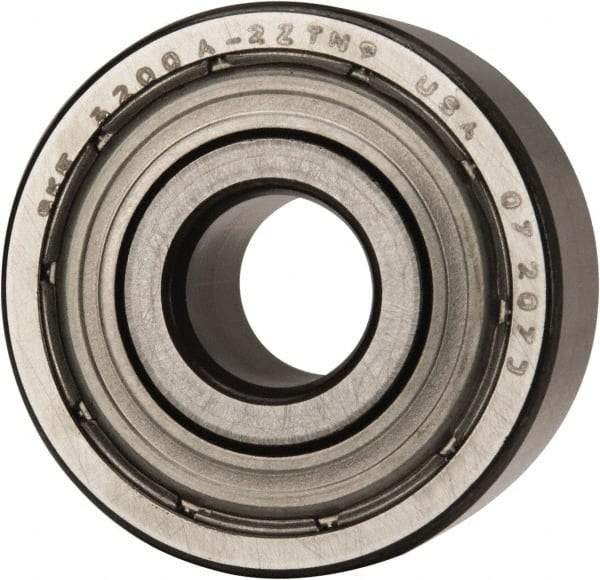

SKF - 10mm Bore Diam, 30mm OD, Double Shield Angular Contact Radial Ball Bearing - 14mm Wide, 2 Rows, Round Bore, 4,300 Lb Static Capacity, 7,610 Lb Dynamic Capacity
Item #: 45671955
Brand: SKF
Model #: 3200 A-2ZTN9
Exact Tooling IR#: 04
Features and Benefits
Double shield refers to two shields, one on each side of the bearing. The shield is located on the outer race does not make contact with the inner race. Ideal for very high speeds, but does not prevent smaller contaminants from entering the bearing. They are more economical than seals.
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Angular Contact |
| Style | Double Shield |
| Bore Diameter (mm) | 10.00 |
| Outside Diameter (mm) | 30.00 |
| Outside Diameter (Decimal Inch) | 1.1800 |
| Width (Decimal Inch) | 0.5500 |
| Width (mm) | 14.00 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Contact Angle | 30 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 4300 |
| Dynamic Load Capacity (Lb.) | 7610 |
| Cage Material | Glass fiber reinforced polyamide |
| Maximum RPM | 16000 |
