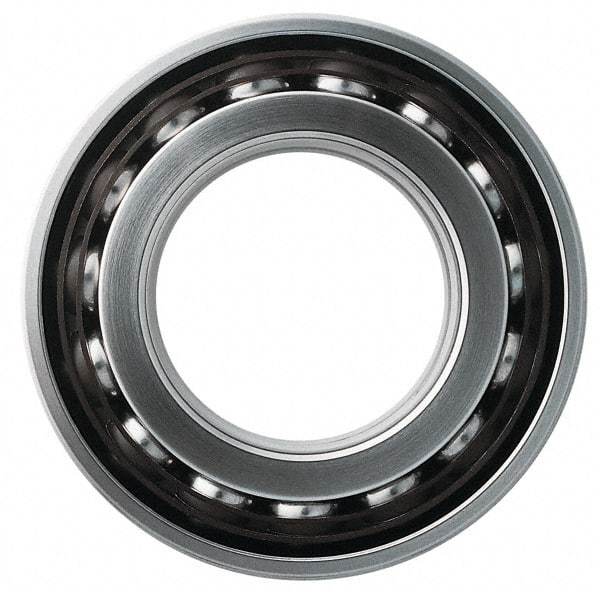

SKF - 30mm Bore Diam, 62mm OD, Open Angular Contact Radial Ball Bearing - 23.8mm Wide, 2 Rows, Round Bore, 20,800 Lb Static Capacity, 28,600 Lb Dynamic Capacity
Item #: 45672334
Brand: SKF
Model #: 3206 A/C3
Exact Tooling IR#: 04
Features and Benefits
Open Bearing design without seals or shields and are intended to be lubricated in place and periodically maintained
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Angular Contact |
| Style | Open |
| Bore Diameter (mm) | 30.00 |
| Outside Diameter (mm) | 62.00 |
| Outside Diameter (Decimal Inch) | 2.4400 |
| Width (Decimal Inch) | 0.9400 |
| Width (mm) | 23.80 |
| Flange Type | Without Flange |
| Number of Rows | 2 |
| Bore Type | Round |
| Contact Angle | 30 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 20800 |
| Dynamic Load Capacity (Lb.) | 28600 |
| Maximum RPM | 9500 |
