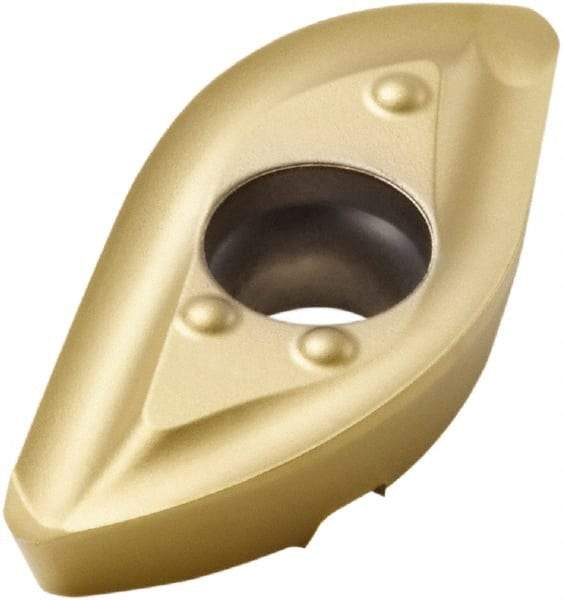

Seco - 218.20060 ME03 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.09" Thick, 0.2" Inscribed Circle, 6mm Corner Radius
Item #: 46126454
Brand: Seco
Model #: 02441353
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 218.20 |
| Insert Size | 060 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2000 |
| Length (Decimal Inch) | 0.4600 |
| Inscribed Circle (Decimal Inch) | 0.2000 |
| Thickness (Decimal Inch) | 0.0900 |
| Corner Radius (mm) | 6.00 |
| Hole Diameter (mm) | 2.00 |
| Rake Angle | 12 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Irregular |
| Insert Hand | Right Hand |
| Chipbreaker | ME03 |
| Cutting Edge Style | Honed |
| ISO Number | 218.20-060ER-ME03 |
