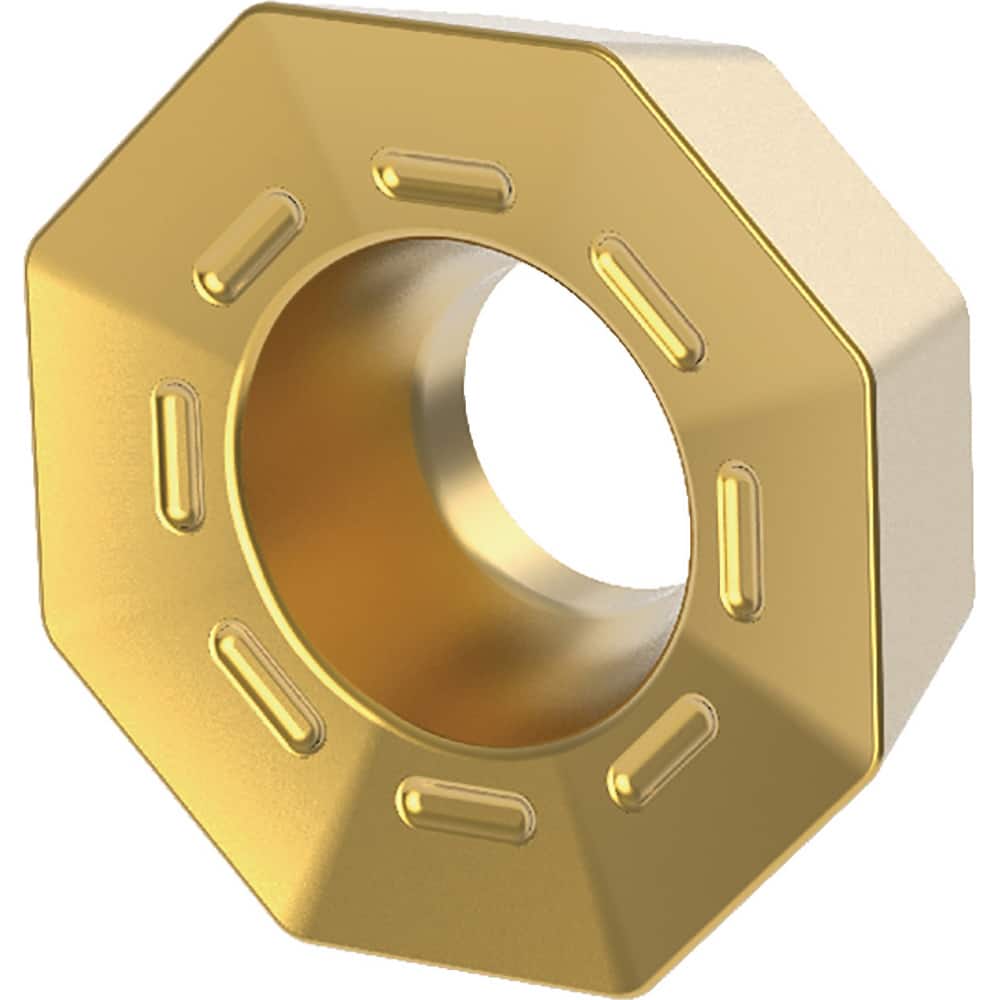

ODMT040408EN412 X700 Carbide Milling Insert TiAlN Finish, 4mm Long x 0.187″ Thick
Item #: 46128005
Brand: Kennametal
Model #: 5666904
Product Specifications
| Insert Style | ODMT |
| Insert Size | 040408 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | X700 |
| Inscribed Circle (Decimal Inch) | 0.1870 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Ansi Code | ODMT040408EN412 |
| Iso Code | ODMT040408EN412 |
| Manufacturers Catalog Number | ODMT040408EN412 |
| Cutter Series Compatibility | 7745VOD04 |
| Chip Breaker | 412 |
| Shape | Octagon |
| Coating/Finish | TiAlN |
| Length | 4.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
