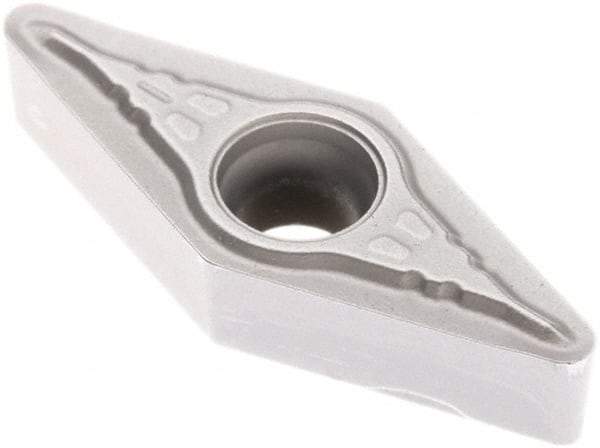

Seco - VBMT21.52 F1 Grade TP3501 Carbide Turning Insert - TiCN/Al2O3 Finish, Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 46149142
Brand: Seco
Model #: 03169505
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4400 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | TP3501 |
| Coating | TiCN/Al2O3 |
| Material Grade | C4/C5 |
| Chip Breaker | F1 |
| Insert Length (Decimal Inch) | 0.4400 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 5 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Diamond |
