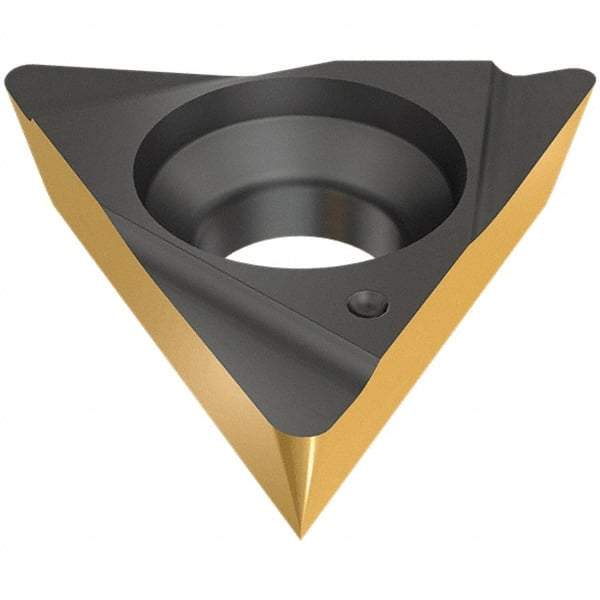

Iscar - TPGX730 L Grade IC520N Carbide Turning Insert - TiCN/TiN Finish, 60° Triangle, 5.56mm Inscr Circle, 2.38mm Thick, 0.2mm Corner Radius
Item #: 46632378
Brand: Iscar
Model #: 5517931
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 730 |
| Material | Carbide |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3750 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC520N |
| Coating | TiCN/TiN |
| Chip Breaker | L |
| Hole Diameter (mm) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1180 |
| ISO Number | TPGX 730-L |
| Rake | Positive |
| Relief Angle | 11 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5517931 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Triangle |
