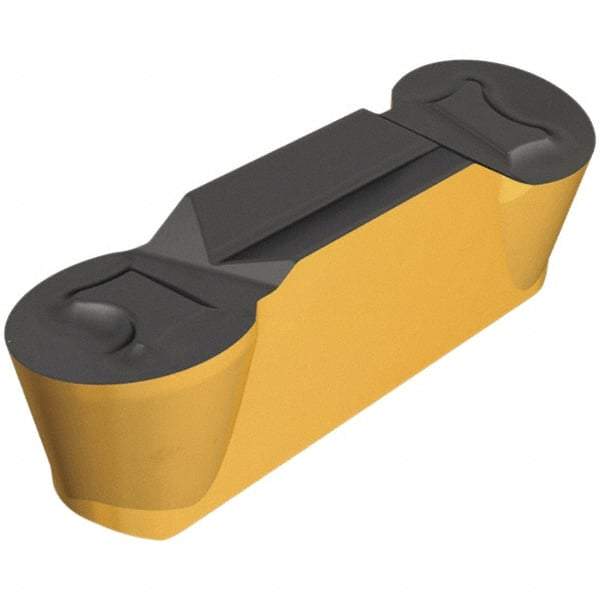

Iscar - 4020HFPR Grade IC806, 4mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Right Hand, 2mm Corner Radius, AlTiN Finish
Item #: 46652913
Brand: Iscar
Model #: 3318158
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HFPR |
| Insert Size | 4020 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC806 |
| Coating | AlTiN |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | PVD |
| Series | Heliface |
| ISO Number | HFPR 4020 IC806 |
| Manufacturers Catalog Number | 3318158 |
