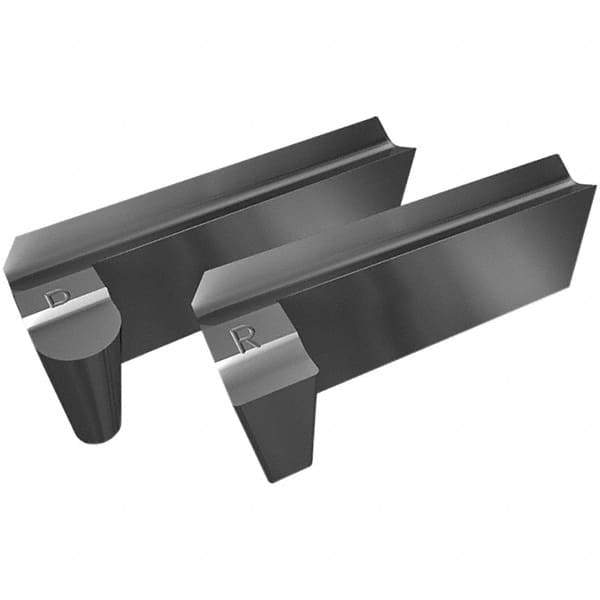

Iscar - 12-9.5-420T6LPGIR Grade IC907, 4mm Cutting Width Carbide Grooving Insert - 5.5mm Max Depth of Cut, Right Hand, 2mm Corner Radius, TiAlN/TiN Finish
Item #: 46654703
Brand: Iscar
Model #: 3307486
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPGIR |
| Insert Size | 12-9.5-420T6 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Maximum Depth of Cut (mm) | 5.50 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | PVD |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1810 |
| Series | Cut Grip |
| ISO Number | LPGIR 12-9.5-420T6 IC907 |
| Manufacturers Catalog Number | 3307486 |
| Overall Width (mm) | 9.50 |
| Overall Width (Decimal Inch) | 0.3740 |
