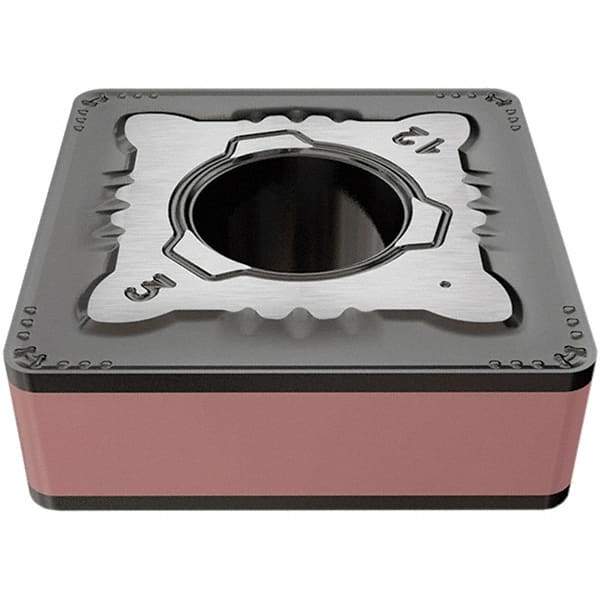

Iscar - SNMG644 R3M Grade IC806 Carbide Turning Insert - AlTiN Finish, 90° Square, 19.05mm Inscr Circle, 6.35mm Thick, 1.6mm Corner Radius
Item #: 46658605
Brand: Iscar
Model #: 3302387
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 644 |
| Material | Carbide |
| Length (mm) | 19.05 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC806 |
| Coating | AlTiN |
| Chip Breaker | R3M |
| ISO Number | SNMG 644 R3M |
| Rake | Positive |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3302387 |
| Primary Workpiece Material | S |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Shape | Square |
