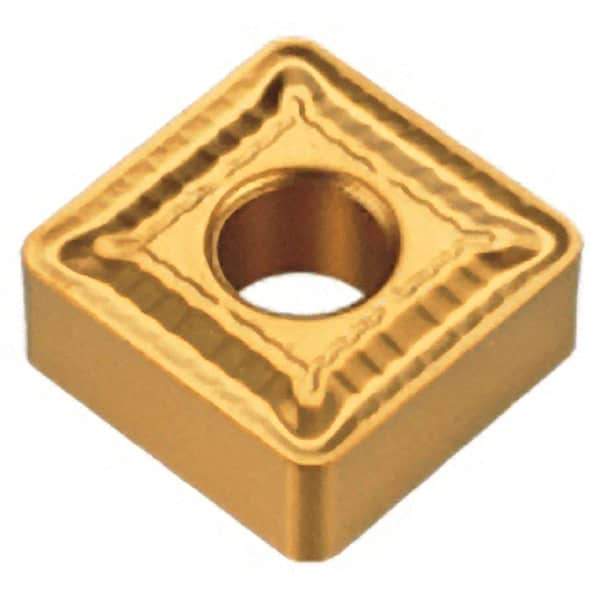

Iscar - SNMG644 GN Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, 90° Square, 19.05mm Inscr Circle, 6.35mm Thick, 1.6mm Corner Radius
Item #: 46659306
Brand: Iscar
Model #: 3308183
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 644 |
| Material | Carbide |
| Inscribed Circle (mm) | 19.05 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Chip Breaker | GN |
| ISO Number | SNMG 644-GN |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3308183 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Multi Use Application | Turning |
| Shape | Square |
