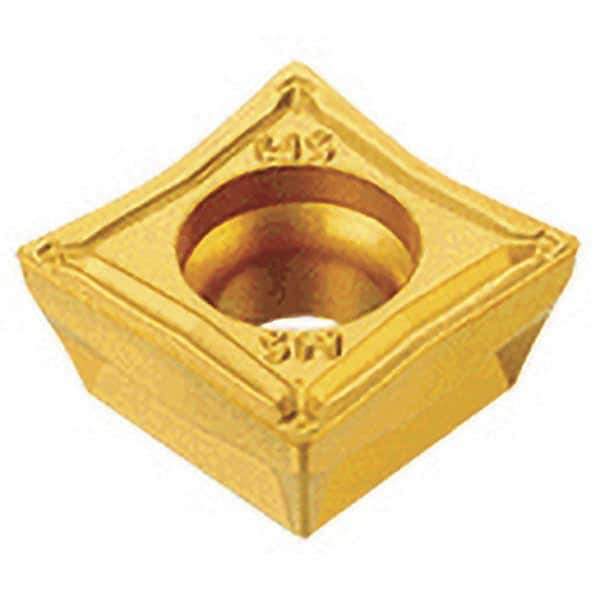

Iscar - QC95MT100504 SM Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, 80° Square, 9.65mm Inscr Circle, 5mm Thick, 0.4mm Corner Radius
Item #: 46659918
Brand: Iscar
Model #: 3314625
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QC95MT |
| Insert Size | 100504 |
| Material | Carbide |
| Length (mm) | 10.40 |
| Length (Decimal Inch) | 0.4090 |
| Inscribed Circle (mm) | 9.65 |
| Inscribed Circle (Decimal Inch) | 0.3800 |
| Thickness (Decimal Inch) | 0.1970 |
| Thickness (mm) | 5.00 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Chip Breaker | SM |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| ISO Number | QC95MT 100504-SM |
| Relief Angle | 7 |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3314625 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi Use Application | Turning |
| Shape | Square |
