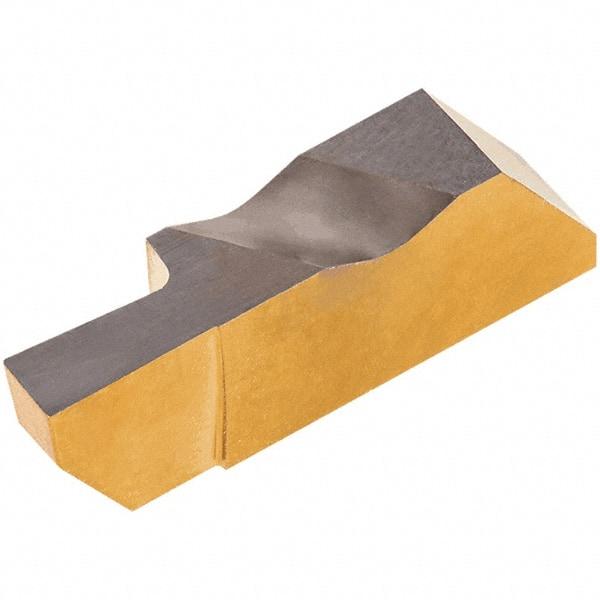

Iscar - 3094INGD Grade IC807, 2.39mm Cutting Width Carbide Grooving Insert - 6.35mm Max Depth of Cut, Left Hand, 0.19mm Corner Radius, TiAlN/TiN Finish
Item #: 46666236
Brand: Iscar
Model #: 6411984
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | INGD |
| Insert Size | 3094 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Corner Radius (Decimal Inch) | 0.0075 |
| Coating Process | PVD |
| Overall Length (mm) | 25.14 |
| Overall Length (Decimal Inch) | 0.9900 |
| Series | Notch-Grip |
| ISO Number | INGD3094L IC807 |
| Manufacturers Catalog Number | 6411984 |
| Overall Width (mm) | 4.95 |
| Overall Width (Decimal Inch) | 0.1950 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7400 |
