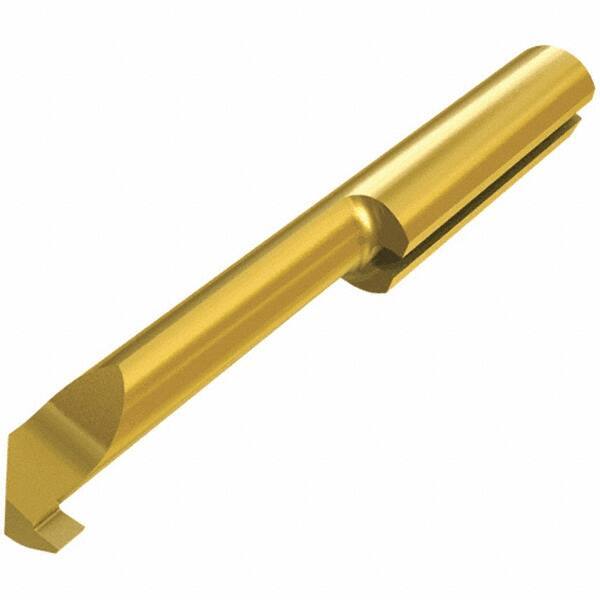

Iscar - 6.8mm Min Bore Diam, 2.5mm Max Bore Depth, 7mm Shank Diam, Boring Bar - Left Hand Cut, Solid Carbide, TiCN/TiN Finish
Item #: 46666715
Brand: Iscar
Model #: 6411179
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Boring bars are used to enlarge or finish the inside diameter of a workpiece.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.2680 |
| Minimum Bore Diameter (mm) | 6.80 |
| Maximum Bore Depth (Decimal Inch) | 0.0980 |
| Maximum Bore Depth (mm) | 2.50 |
| Material | Solid Carbide |
| Material Grade | Tough Grade |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.2760 |
| Shank Diameter (mm) | 7.0000 |
| Overall Length (Decimal Inch) | 1.7720 |
| Overall Length (mm) | 45.00 |
| Cutting Direction | Left Hand |
| Finish/Coating | TiCN/TiN |
| Corner Radius (Decimal Inch) | 0.0000 |
| Corner Radius (mm) | 0.00 |
| Manufacturer Grade | IC228 |
