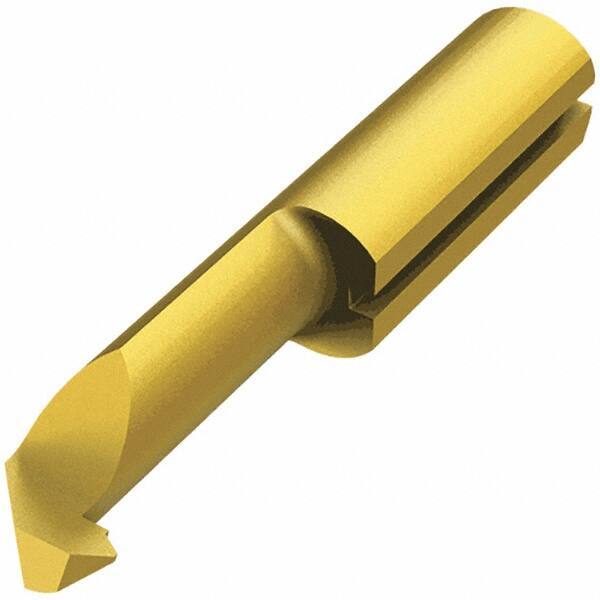

Iscar - 5mm Min Bore Diam, 0.5mm Max Bore Depth, 5mm Shank Diam, Corner Radius & Profile Boring Bar - Left Hand Cut, Solid Carbide, TiAlN Finish
Item #: 46667010
Brand: Iscar
Model #: 6404448
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1970 |
| Minimum Bore Diameter (mm) | 5.00 |
| Maximum Bore Depth (mm) | 0.50 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Boring Bar Type | Corner Radius; Profile Boring |
| Shank Diameter (Decimal Inch) | 0.1970 |
| Shank Diameter (mm) | 5.0000 |
| Overall Length (Decimal Inch) | 1.1810 |
| Overall Length (mm) | 30.00 |
| Cutting Direction | Left Hand |
| Finish/Coating | TiAlN |
| Bar End Angle | 60 |
| Manufacturer Grade | IC908 |
