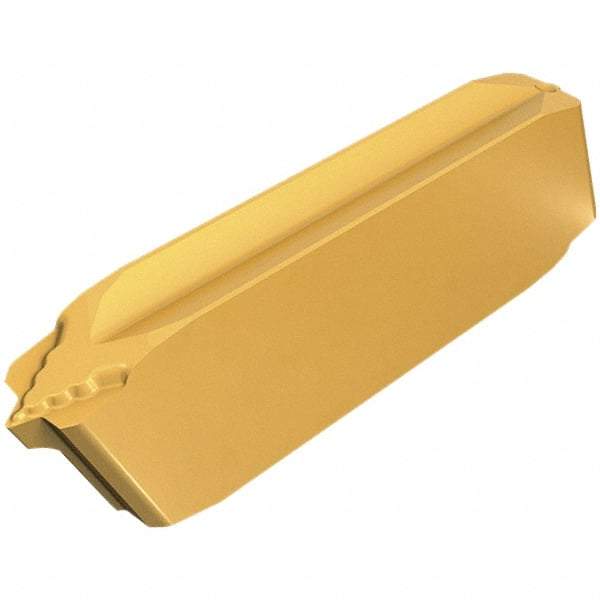

Iscar - TIP2P20 Grade IC08, External BSF, BSPT & Whitworth Threading Insert - 20 TPI Ext Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 46667234
Brand: Iscar
Model #: 6403469
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIP |
| Insert Size | 2P20 |
| Thread Type | External |
| Cutting Direction | Neutral |
| Insert Hand | Right Hand |
| Thread Standard | BSF; BSPT; Whitworth |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC08 |
| External Pitch/TPI | 20 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | Uncoated |
| ISO Number | TIP 2P20-BSW |
| Corner Radius (mm) | 0.16 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Width of Cutting Tip (mm) | 2.40 |
| Width of Cutting Tip (Decimal Inch) | 0.0940 |
| Manufacturers Catalog Number | 6403469 |
