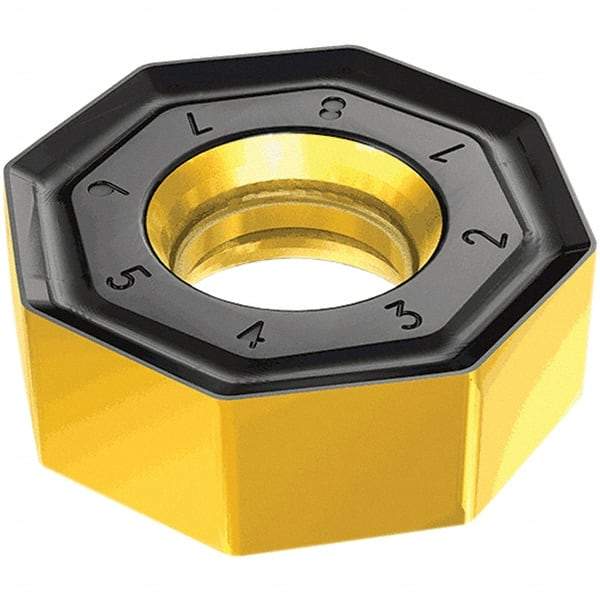

Iscar - ONMU070616 RM Grade IC5100 Carbide Milling Insert - TiCN/Al2O3 Finish, 6.5mm Thick, 18.8mm Inscribed Circle, 1/16" Corner Radius
Item #: 46672671
Brand: Iscar
Model #: 5668871
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONMU |
| Insert Size | 070616 |
| Material | Carbide |
| Manufacturer's Grade | IC5100 |
| Coating | TiCN/Al2O3 |
| Width (mm) | 7.00 |
| Width (Decimal Inch) | 0.2760 |
| Inscribed Circle (mm) | 18.80 |
| Inscribed Circle (Decimal Inch) | 0.7400 |
| Thickness (mm) | 6.50 |
| Thickness (Decimal Inch) | 0.2560 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Shape | Octagon |
| Chipbreaker | RM |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Manufacturers Catalog Number | ONMU 070616-RM |
| ISO Number | ONMU 070616-RM |
| ANSI Number | ONMU 070616-RM |
