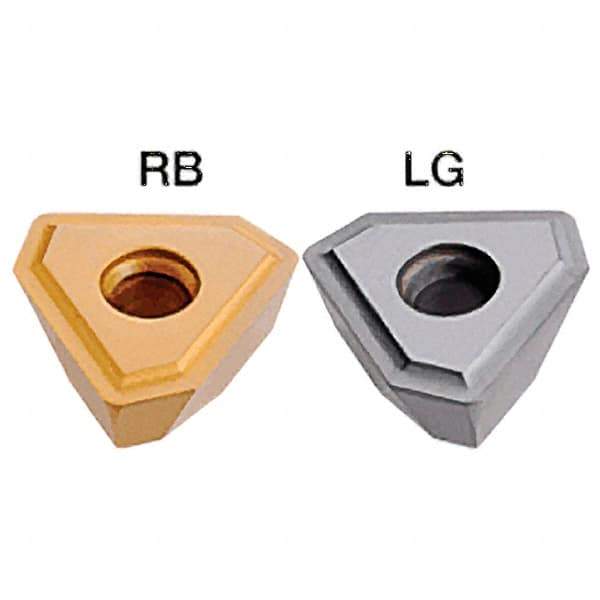

Iscar - TPMX2405 LG Grade IC9025 Carbide Indexable Drill Insert - TiCN/Al2O3/TiN Finish, Triangle, 14.2mm Inscribed Circle
Item #: 46691184
Brand: Iscar
Model #: 4804952
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMX |
| Insert Size | 2405 |
| Material | Carbide |
| Manufacturer's Grade | IC9025 |
| Inscribed Circle (mm) | 14.20 |
| Inscribed Circle (Decimal Inch) | 0.5590 |
| Thickness (mm) | 5.50 |
| Thickness (Decimal Inch) | 0.2170 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Shape | Triangle |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | LG |
