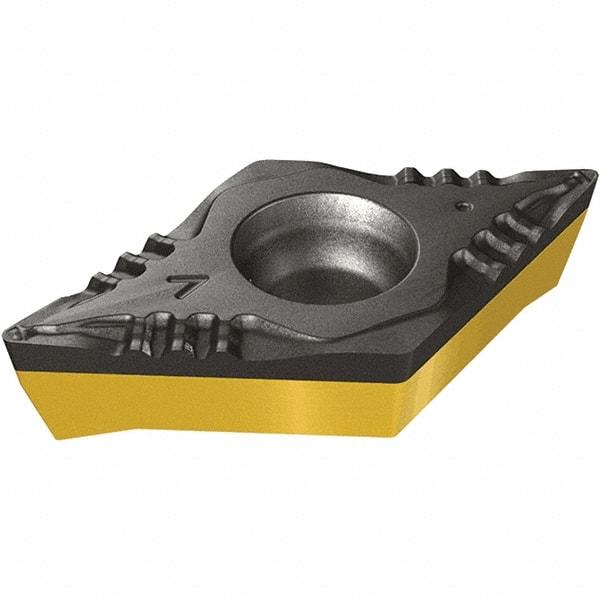

Iscar - DCMT13T508 F3P Grade IC8150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 11mm Inscr Circle, 5.11mm Thick, 0.8mm Corner Radius
Item #: 46693941
Brand: Iscar
Model #: 5567104
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 13T508 |
| Material | Carbide |
| Length (mm) | 13.40 |
| Length (Decimal Inch) | 0.5250 |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4330 |
| Thickness (Decimal Inch) | 0.2010 |
| Thickness (mm) | 5.11 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC8150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | F3P |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| ISO Number | DCMT 13T508-F3P-SL |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5567104 |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Multi Use Application | Turning |
| Shape | Diamond |
