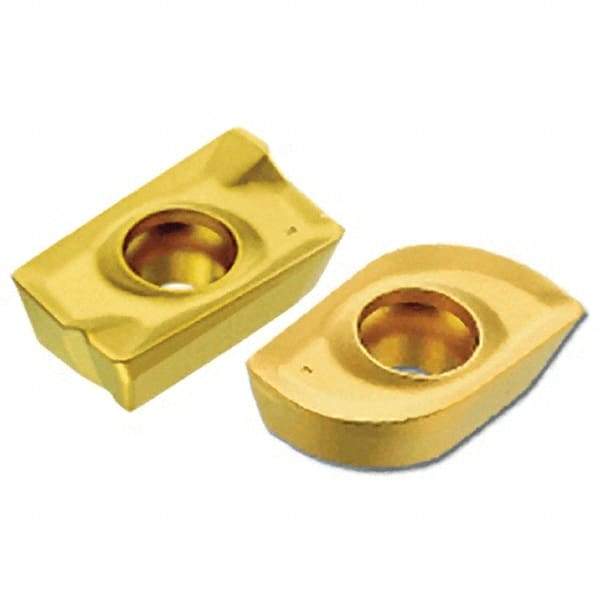

Iscar - APKT160424 HM Grade IC520M Carbide Milling Insert - TiCN Finish, 5.3mm Thick, 3/32" Corner Radius
Item #: 46695128
Brand: Iscar
Model #: 5600584
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APKT |
| Insert Size | 160424 |
| Material | Carbide |
| Manufacturer's Grade | IC520M |
| Coating | TiCN |
| Width (mm) | 9.45 |
| Length (mm) | 16.70 |
| Thickness (mm) | 5.30 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.40 |
| Relief Angle | 11.000 |
| Rake Angle | 25 |
| Coating Process | CVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HM |
| Maximum Depth of Cut (mm) | 15.20 |
| Manufacturers Catalog Number | APKT 160424R-HM |
| ISO Number | APKT 160424R-HM |
| ANSI Number | APKT 160424R-HM |
