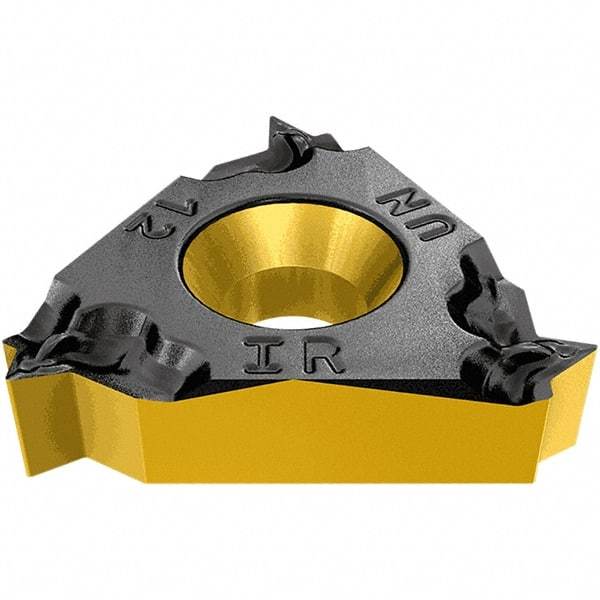

Iscar - 16ERM External Right Hand 19 Whitworth Laydown Threading Insert - Grade IC250, TiCN/TiN Coated Carbide, 9.52mm Inscribed Circle
Item #: 46698007
Brand: Iscar
Model #: 5920293
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 16ERM |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Whitworth |
| Manufacturer's Grade | IC250 |
| External Threads Per Inch | 19 |
| External Pitch (mm) | 19.00 |
| Threads Per Inch | 19 |
| Pitch (mm) | 19.00 |
| Inscribed Circle (mm) | 9.52 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Coating | TiCN/TiN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.16 |
| Corner Radius (Decimal Inch) | 0.0060 |
| Chipbreaker | M |
