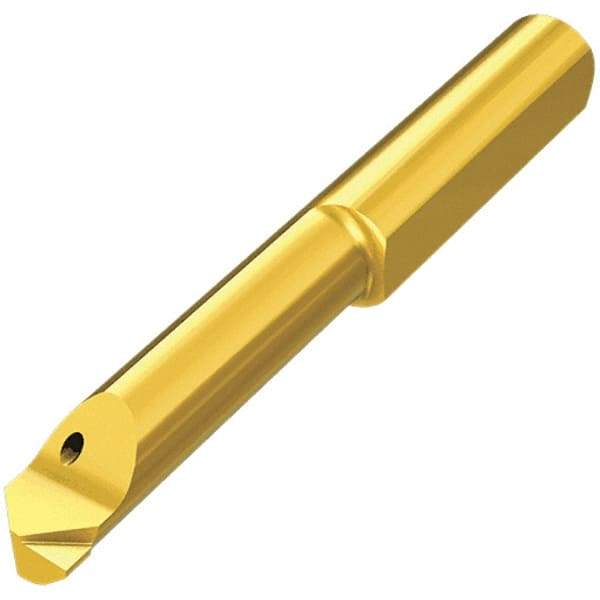

Iscar - 4mm Min Bore Diam, 0.2mm Max Bore Depth, 4mm Shank Diam, Corner Radius & Profile Boring Bar - 0.001" Corner Radius, Right Hand Cut, Solid Carbide, TiCrVN Finish
Item #: 46700308
Brand: Iscar
Model #: 6412116
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
TiCrVN hard nitride coatings are ideal for small machining operations.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1570 |
| Minimum Bore Diameter (mm) | 4.00 |
| Maximum Bore Depth (Decimal Inch) | 0.0080 |
| Maximum Bore Depth (mm) | 0.20 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Boring Bar Type | Corner Radius; Profile Boring |
| Shank Diameter (Decimal Inch) | 0.1570 |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (Decimal Inch) | 1.1810 |
| Overall Length (mm) | 30.00 |
| Cutting Direction | Right Hand |
| Finish/Coating | TiCrVN |
| Corner Radius (Decimal Inch) | 0.0010 |
| Corner Radius (mm) | 0.02 |
| Bar End Angle | 8 |
| Manufacturer Grade | IC909 |
