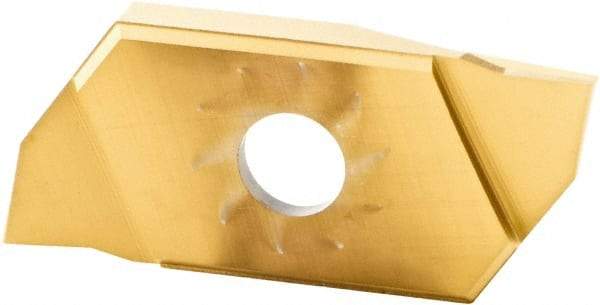

Kennametal - KPK15ERB1242 Grade KC5020P Carbide Turning Insert - TiCN Finish, 55° Irregular, 0.2mm Corner Radius
Item #: 46860839
Brand: Kennametal
Model #: 3124332
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KPK |
| Insert Size | 15ERB1242 |
| Material | Carbide |
| Length (mm) | 15.00 |
| Length (Decimal Inch) | 0.5906 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KC5020P |
| Coating | TiCN |
| Material Grade | Micrograin |
| ISO Number | KPK15ERB1242 |
| Coating Process | PVD |
| Included Angle | 55 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Series | Kenna Precision |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Shape | Irregular |
