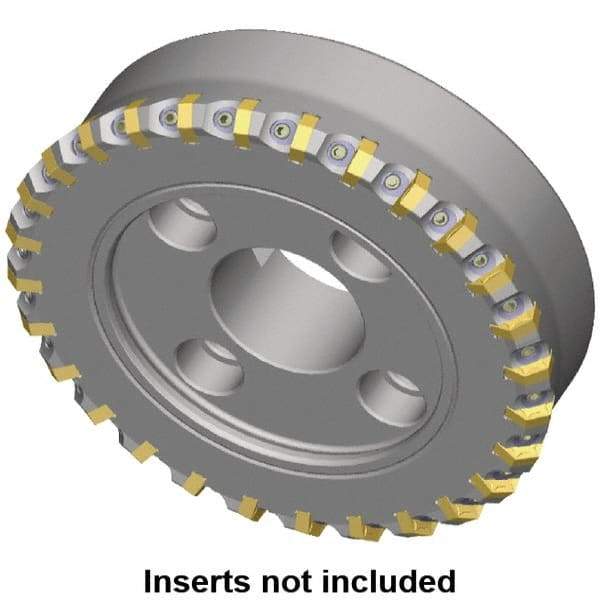

Kennametal - 88.65mm Cut Diam, 1" Arbor Hole, 8mm Max Depth of Cut, 30° Indexable Chamfer & Angle Face Mill - 8 Inserts, HNGX 0905... Insert, Right Hand Cut, 8 Flutes, Series HexaCut
Item #: 46862371
Brand: Kennametal
Model #: 2430830
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 88.65 |
| Cutting Diameter (Decimal Inch) | 3.4900 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 30 |
| Overall Height (Decimal Inch) | 2.0000 |
| Overall Height (mm) | 50.80 |
| Insert Compatibility | HNGX 0905... |
| Series | HexaCut |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 8 |
| Cutter Style | M750 |
| Number of Flutes | 8 |
| Hub Diameter (Decimal Inch) | 3.1496 |
| Hub Diameter (mm) | 80.00 |
| Maximum Body Diameter (Decimal Inch) | 3.4382 |
| Maximum RPM | 3900 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | HNGX 0905... |
