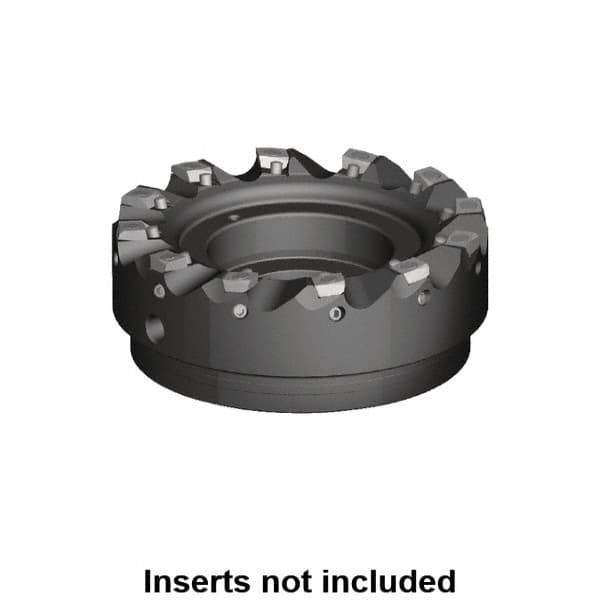

Kennametal - 6 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 1mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, MDHX 1004.. Insert Compatibility, Series Fix-Perfect
Item #: 46863007
Brand: Kennametal
Model #: 1998358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | MDHX 1004.. |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Clamp |
| Cutter Style | CF |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 55.00 |
| Maximum RPM | 20200 |
| Complete Insert Compatibility | MDHX 1004ZDFRGD4W |
