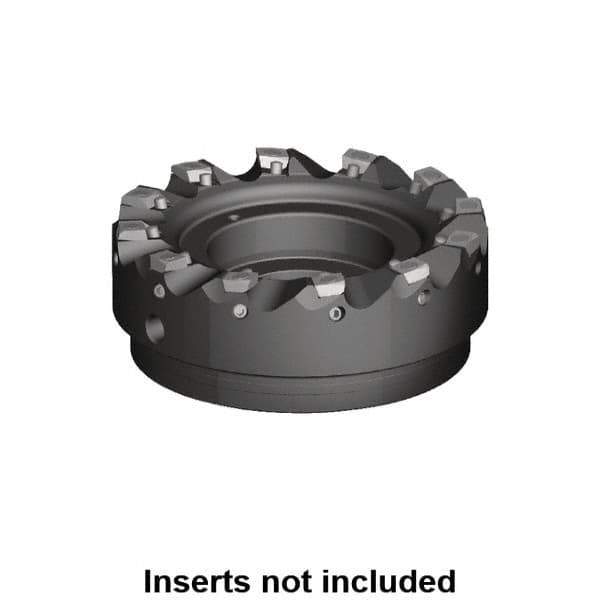

Kennametal - 30 Inserts, 250mm Cut Diam, 60mm Arbor Diam, 1mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, MDHX 1004.. Insert Compatibility, Series Fix-Perfect
Item #: 46863049
Brand: Kennametal
Model #: 1886332
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250.00 |
| Cutting Diameter (Decimal Inch) | 9.8425 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | MDHX 1004.. |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 1.00 |
| Number of Cutter Inserts | 30 |
| Insert Holding Method | Clamp |
| Cutter Style | CF |
| Number of Flutes | 30 |
| Hub Diameter (mm) | 230.00 |
| Maximum RPM | 5100 |
| Pitch | Fine |
| Complete Insert Compatibility | MDHX 1004ZDFRGD4W |
