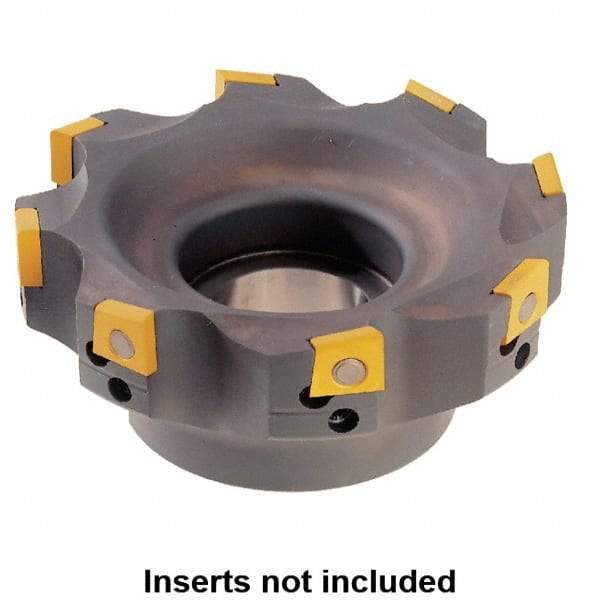

Kennametal - 5 Inserts, 50mm Cut Diam, 16mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, 4.21103.. Insert Compatibility, Series Fix-Perfect
Item #: 46863429
Brand: Kennametal
Model #: 1191195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | 4.21103.. |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Clamp |
| Cutter Style | P8 |
| Number of Flutes | 5 |
| Rake | Positive |
| Hub Diameter (mm) | 33.00 |
| Hub Diameter (Decimal Inch) | 1.2992 |
| Maximum Body Diameter (Decimal Inch) | 1.8976 |
| Maximum RPM | 6300 |
| Complete Insert Compatibility | 4.21103R6 |
