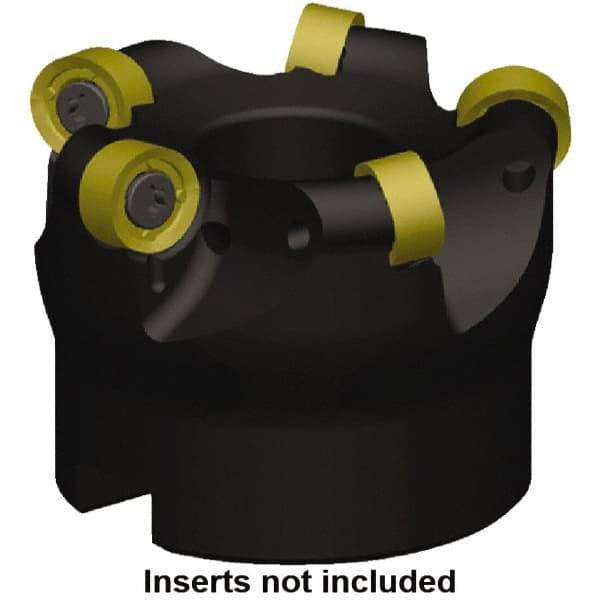

Kennametal - 80mm Cut Diam, 5mm Max Depth, 27mm Arbor Hole, 8 Inserts, RN.J 10T3... Insert Style, Indexable Copy Face Mill - KDR Cutter Style, 50mm High, Series Rodeka
Item #: 46868386
Brand: Kennametal
Model #: 5152692
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | Rodeka |
| Number of Cutter Inserts | 8 |
| Insert Compatibility | RN.J 10T3... |
| Cutter Style | KDR |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.3620 |
| Insert Inscribed Circle (mm) | 10.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | RN.J 10T3M0.N.. |
