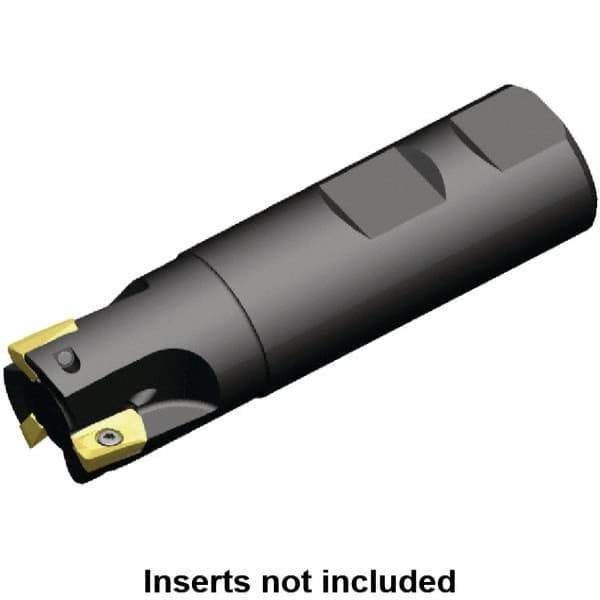

Kennametal - 1" Cut Diam, 10.03mm Max Depth of Cut, 3/4" Shank Diam, 83.31mm OAL, Indexable Square Shoulder Helical End Mill - EDCT 10T3.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant, Series Mill 1-10
Item #: 46871091
Brand: Kennametal
Model #: 3897781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (mm) | 83.31 |
| Overall Length/Projection (Decimal Inch) | 3.2800 |
| Lead Angle | 0 |
| Series | Mill 1-10 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.03 |
| Maximum Depth of Cut (Decimal Inch) | 0.3950 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (mm) | 31.75 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
| Insert Compatibility | EDCT 10T3.. |
| Shank Length (Decimal Inch) | 2.0303 |
| Shank Length (mm) | 51.57 |
| Maximum RPM | 39700 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
