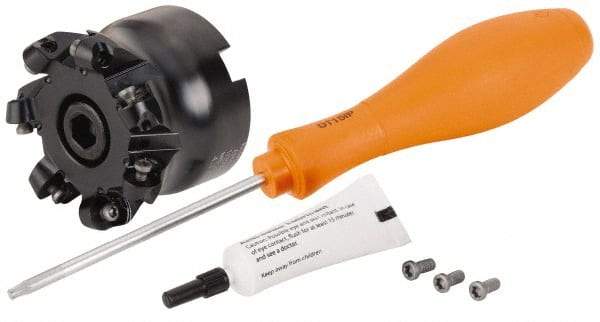

Kennametal - 63mm Cut Diam, 6mm Max Depth, 22mm Arbor Hole, 7 Inserts, RP.T 1204... Insert Style, Indexable Copy Face Mill - 30,900 Max RPM, 50mm High, Through Coolant, Series KSRM
Item #: 46887766
Brand: Kennametal
Model #: 4025498
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | KSRM |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RP.T 1204... |
| Through Coolant | Yes |
| Maximum RPM | 30900 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.9290 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RP.T 1204M0.. |
