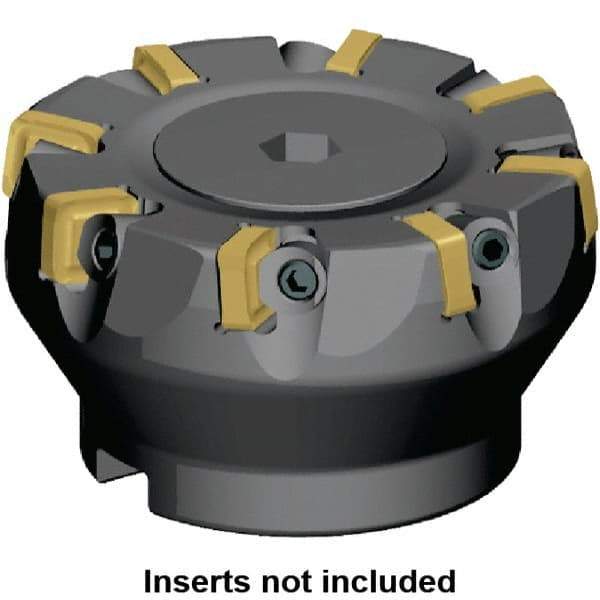

Kennametal - 127mm Cut Diam, 40mm Arbor Hole, 5mm Max Depth of Cut, 6° Indexable Chamfer & Angle Face Mill - 18 Inserts, SNXF 1204... Insert, 18 Flutes, Series KSSR
Item #: 46888640
Brand: Kennametal
Model #: 2465832
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 6 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SNXF 1204... |
| Series | KSSR |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 18 |
| Insert Holding Method | Wedge |
| Cutter Style | KSSR |
| Number of Flutes | 18 |
| Hub Diameter (Decimal Inch) | 3.5039 |
| Hub Diameter (mm) | 89.00 |
| Maximum Body Diameter (Decimal Inch) | 4.9327 |
| Maximum RPM | 3800 |
| Complete Insert Compatibility | SNXF 1204ZNENLD |
