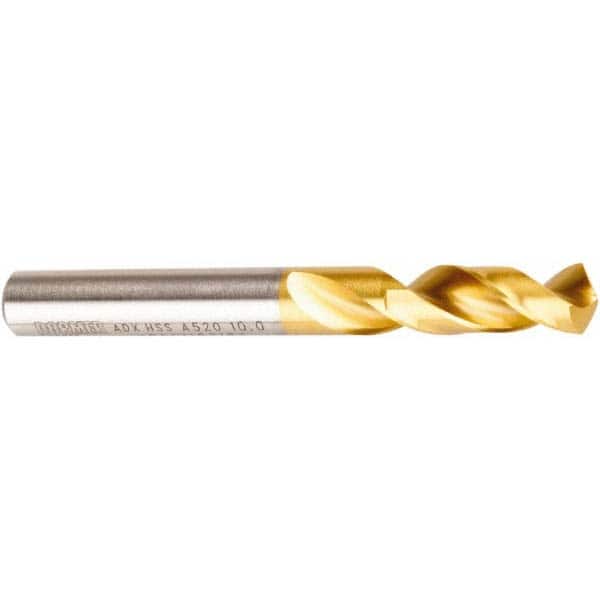

DORMER - 10mm 130° High Speed Steel Screw Machine Drill Bit
Item #: 83278994
Brand: DORMER
Model #: 0038598
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Bit Size (mm) | 10.00 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Flute Length (mm) | 43.00 |
| Flute Length (Decimal Inch) | 1.6942 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5066 |
| Flute Length x Diameter Ratio | 2.5xD |
| Point Type | ADX |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Specification Designation | DIN |
| Threaded Shank | No |
| Number of Flutes | 2 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.000 to -0.022 |
| Specification Number | DIN 1897 |
| Web Thinning | Web-Thinned |
| Material Grade | M2 |
| Series/List | A520 |
| Length Type | Stub |
