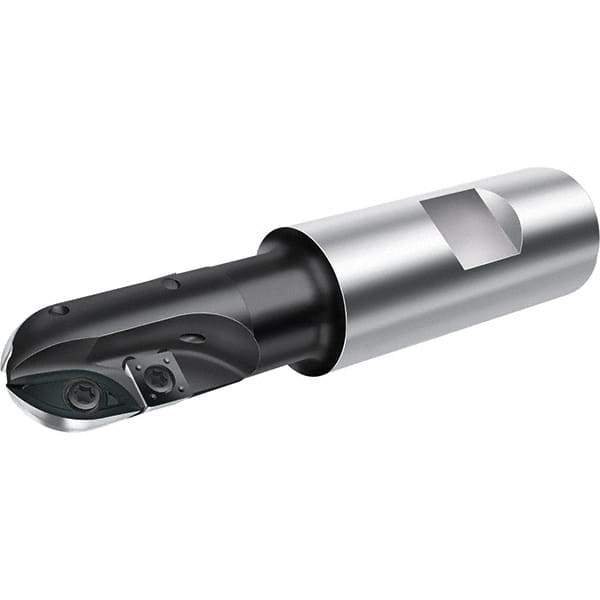

Walter - 20mm Cut Diam, 28mm Max Depth of Cut, 20mm Shank Diam, 110mm OAL, Indexable Ball Nose End Mill - 22,200 Max RPM
Item #: 47277132
Brand: Walter
Model #: 5001230
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20 |
| Cutting Diameter (Decimal Inch) | 0.787 |
| Maximum Depth of Cut (mm) | 28.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1020 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.787 |
| Series | F2339-W-FORMB |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3310 |
| Toolholder Material | Steel |
| Maximum RPM | 22200 |
