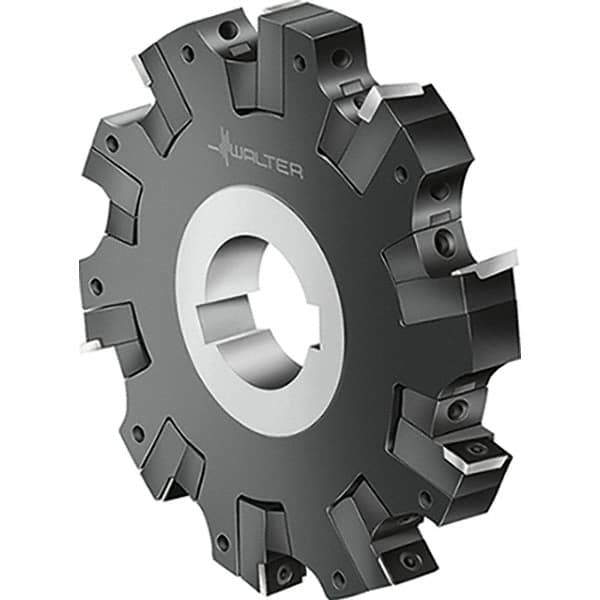

Walter - 0.63" Cutting Width, 200mm Cutter Diam, Indexable Slotting Cutter
Item #: 47304118
Brand: Walter
Model #: 5000702
Exact Tooling IR#: 04
Product Specifications
0.63" Cutting Width, 200mm Cutter Diam, Indexable Slotting Cutter -
| Cutting Width (mm) | 16.00 |
| Cutting Width (Decimal Inch) | 0.6300 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Maximum RPM | 9999 |
| Minimum Cutting Width (Decimal Inch) | 0.6300 |
| Maximum Cutting Width (Decimal Inch) | 0.7480 |
| Maximum Cutting Width (mm) | 19.00 |
| Hub Diameter (mm) | 75.00 |
| Hub Diameter (Decimal Inch) | 2.9530 |
| Manufacturers Catalog Number | F2252.B.200.Z06.16.S686 |
| Arbor Hole Diameter (Decimal Inch) | 1.9690 |
