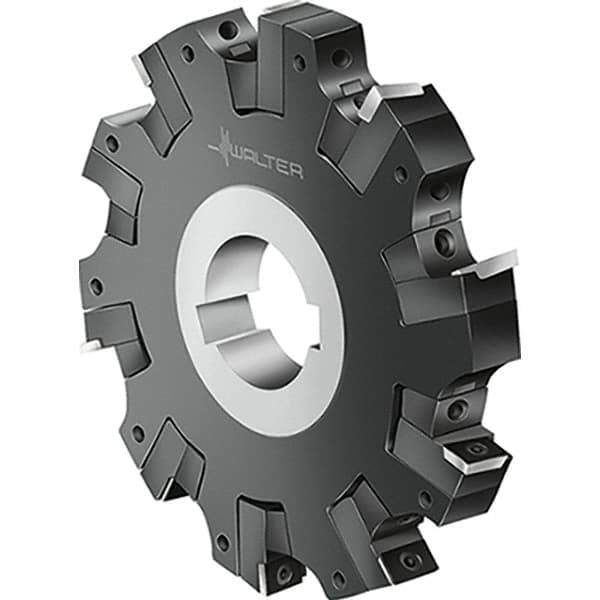

Walter - 0.394" Cutting Width, 125mm Cutter Diam, Indexable Slotting Cutter
Item #: 47304167
Brand: Walter
Model #: 5000690
Exact Tooling IR#: 04
Product Specifications
0.394" Cutting Width, 125mm Cutter Diam, Indexable Slotting Cutter -
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3940 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9210 |
| Maximum RPM | 9999 |
| Minimum Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Cutting Width (Decimal Inch) | 0.4720 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 65.00 |
| Hub Diameter (Decimal Inch) | 2.5590 |
| Manufacturers Catalog Number | F2252.B.125.Z05.10.S685 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
