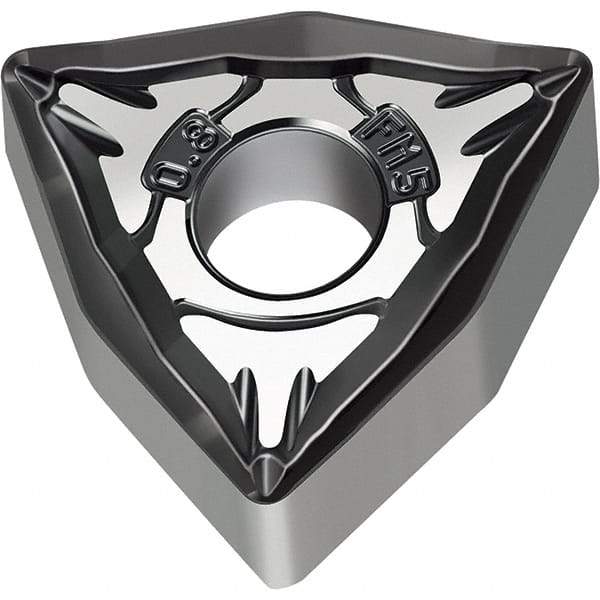

Walter - WNMG FM5 Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 80° Trigon, 12.7mm Inscr Circle, 4.76mm Thick, 0.4mm Corner Radius
Item #: 47310305
Brand: Walter
Model #: 7091942
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Length (mm) | 8.69 |
| Length (Decimal Inch) | 0.3420 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | FM5 |
| Insert Length (Decimal Inch) | 0.3420 |
| OverallLength (mm) | 8.69 |
| Overall Length (Decimal Inch) | 0.3420 |
| Insert Length (mm) | 8.6873 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | WNMG080404-FM5 WSM20S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7091942 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | WNMG-FM5 |
| Maximum Depth of Cut (mm) | 8.69 |
| Maximum Depth of Cut (Decimal Inch) | 0.3420 |
| Cutting Width (mm) | 8.69 |
| Shape | Trigon 80 |
