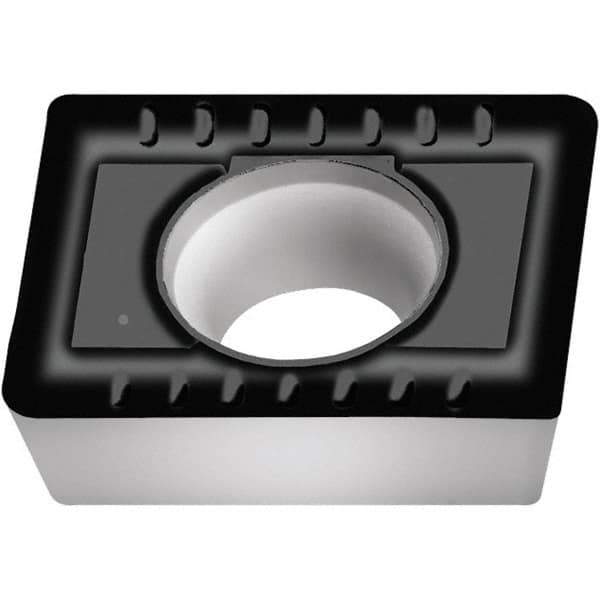

Walter - D51 Grade WSP45S Milling Insert - 4.76mm Thick, 12.7mm Inscribed Circle, 1.2mm Corner Radius
Item #: 47327093
Brand: Walter
Model #: 7057771
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSP45S |
| Width (mm) | 12.70 |
| Width (Decimal Inch) | 0.5000 |
| Length (mm) | 15.88 |
| Length (Decimal Inch) | 0.6250 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Insert Hand | Right Hand |
| Chipbreaker | D51 |
| Maximum Depth of Cut (mm) | 15.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Manufacturers Catalog Number | LPMT150412R-D51 WSP45S |
