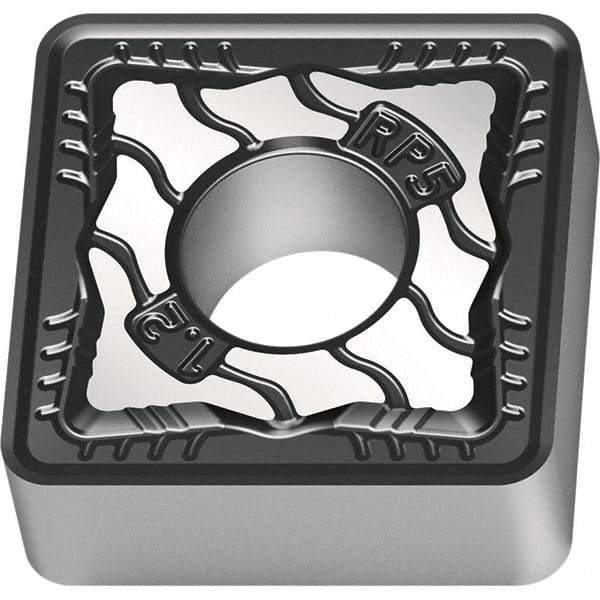

Walter - SNMG RP5 Grade WPP05S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 90° Square, 15.88mm Inscr Circle, 6.35mm Thick, 1.2mm Corner Radius
Item #: 47335476
Brand: Walter
Model #: 6613540
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Length (mm) | 15.88 |
| Length (Decimal Inch) | 0.6250 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 1.2 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Manufacturer's Grade | WPP05S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RP5 |
| Insert Length (Decimal Inch) | 0.6250 |
| OverallLength (mm) | 15.88 |
| Overall Length (Decimal Inch) | 0.6250 |
| Insert Length (mm) | 15-7/8 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | SNMG150612-RP5 WPP05S |
| Relief Angle | 0 |
| Proprietary Coating Designation | WPP05S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6613540 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMG-RP5 |
| Maximum Depth of Cut (mm) | 15.88 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Cutting Width (mm) | 15.88 |
| Shape | Square |
