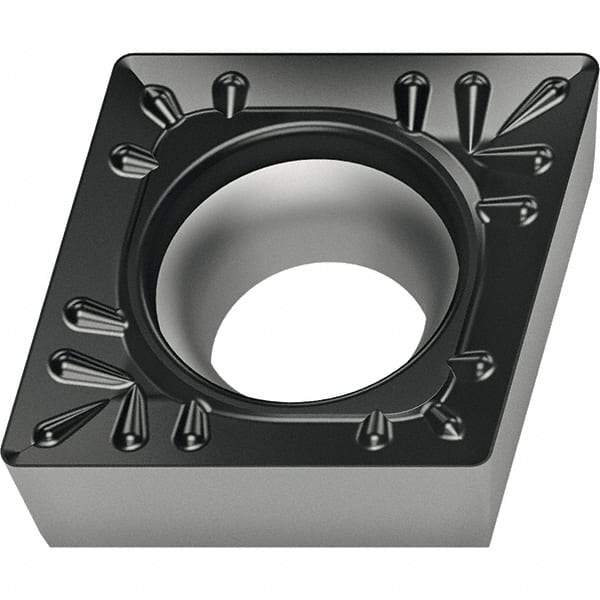

Walter - CCMT RK4 Grade WKK10S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 80° Rhombic, 6.35mm Inscr Circle, 2.38mm Thick, 0.8mm Corner Radius
Item #: 47335492
Brand: Walter
Model #: 6650910
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Length (mm) | 6.45 |
| Length (Decimal Inch) | 0.2540 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WKK10S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK4 |
| Insert Length (Decimal Inch) | 0.2540 |
| OverallLength (mm) | 6.45 |
| Overall Length (Decimal Inch) | 0.2540 |
| Insert Length (mm) | 6.4480 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | CCMT060208-RK4 WKK10S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK10S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6650910 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CCMT-RK4 |
| Maximum Depth of Cut (mm) | 6.45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2540 |
| Cutting Width (mm) | 6.45 |
| Shape | Rhombic 80 |
