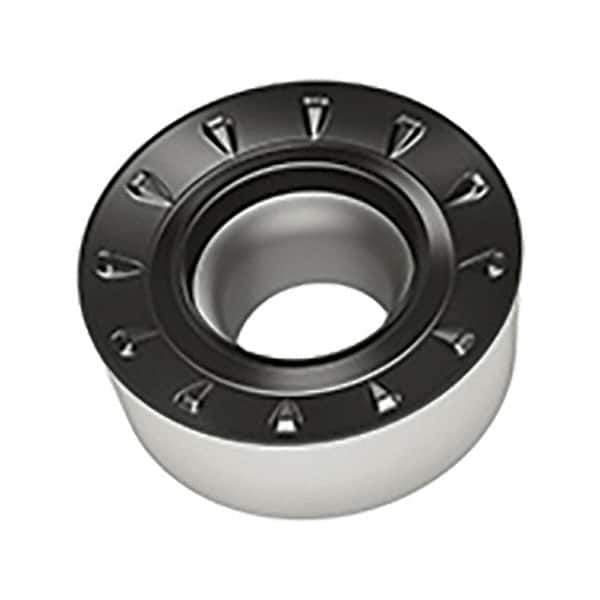

Walter - RCMT RK4 Grade WKK20S Turning Insert - TiCN+Al2O3+(TiCN) Finish, 0° Round, 16mm Inscr Circle, 6.35mm Thick, 8mm Corner Radius
Item #: 47335500
Brand: Walter
Model #: 6651106
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 8 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | WKK20S |
| Coating | TiCN+Al2O3+(TiCN) |
| Chip Breaker | RK4 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| ISO Number | RCMT1606M0-RK4 WKK20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WKK20S |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6651106 |
| Included Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | RCMT-RK4 |
| Shape | Round |
