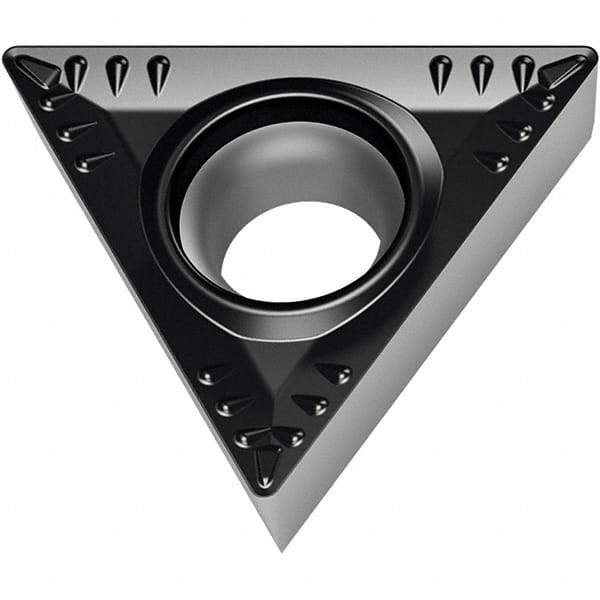

Walter - TCMT RM4 Grade WSM30S Turning Insert - TiAlN+Al2O3+(Al) Finish, 60° Triangle, 9.53mm Inscr Circle, 3.97mm Thick, 0.8mm Corner Radius
Item #: 47336698
Brand: Walter
Model #: 6839140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | WSM30S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | RM4 |
| Insert Length (Decimal Inch) | 0.6500 |
| OverallLength (mm) | 16.50 |
| Overall Length (Decimal Inch) | 0.6500 |
| Insert Length (mm) | 16.4978 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | TCMT16T308-RM4 WSM30S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM30S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6839140 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | TCMT-RM4 |
| Maximum Depth of Cut (mm) | 16.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6500 |
| Cutting Width (mm) | 16.50 |
| Shape | Triangular |
