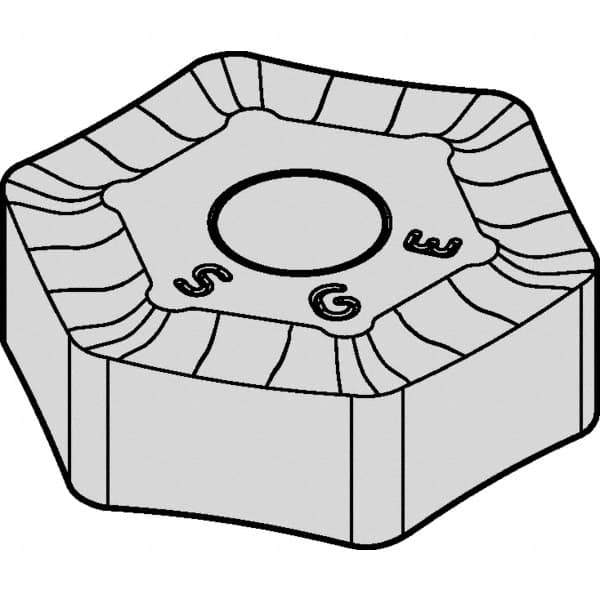

Kennametal - HNHX5354 GE Grade KCPK30 Carbide Milling Insert - Al2O3 Finish, 5.56mm Thick, 16.2mm Inscribed Circle, 1.6mm Corner Radius
Item #: 47388749
Brand: Kennametal
Model #: 6397374
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNHX |
| Insert Size | 5354 |
| Material | Carbide |
| Manufacturer's Grade | KCPK30 |
| Coating | Al2O3 |
| Length (mm) | 9.35 |
| Inscribed Circle (mm) | 16.20 |
| Thickness (mm) | 5.56 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 5.00 |
| Rake Angle | 15 |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | GE |
