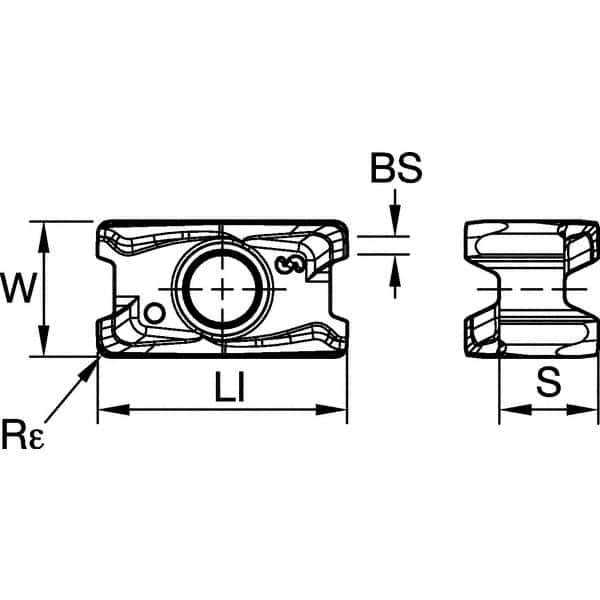

Kennametal - LNGU434 GEM Grade KC520M Carbide Milling Insert - TiAlN Finish, 4.83mm Thick, 3.4mm Inscribed Circle, 1.6mm Corner Radius
Item #: 47388756
Brand: Kennametal
Model #: 6201021
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNGU |
| Insert Size | 434 |
| Material | Carbide |
| Manufacturer's Grade | KC520M |
| Coating | TiAlN |
| Width (mm) | 6.60 |
| Length (mm) | 12.16 |
| Inscribed Circle (mm) | 3.40 |
| Thickness (mm) | 4.83 |
| Corner Radius (mm) | 1.60 |
| Hole Diameter (mm) | 3.40 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | GEM |
