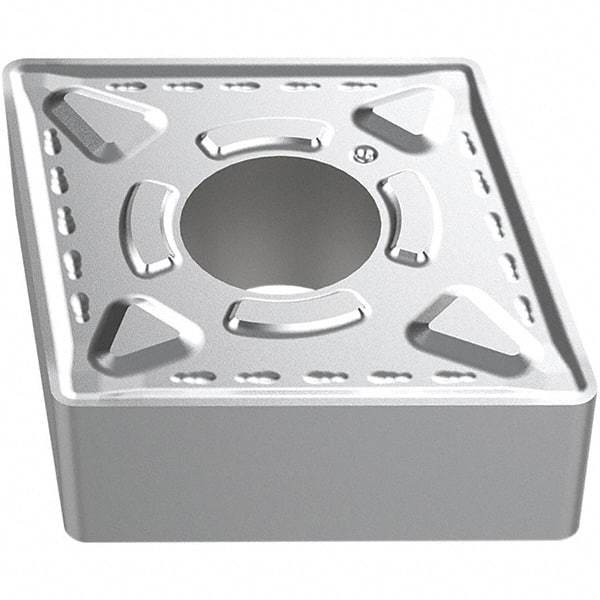

Seco - CNMG542 M6 Grade TP1501 Carbide Turning Insert - Ti(C/N)/Al2O3/TiN Finish, Parallelogram, 0.63" Inscr Circle, 1/4" Thick, 0.03" Corner Radius
Item #: 47429063
Brand: Seco
Model #: 03169651
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 542 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Manufacturer's Grade | TP1501 |
| Coating | Ti(C/N)/Al2O3/TiN |
| Chip Breaker | M6 |
| Proprietary Coating Designation | Duratomic |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| Shape | Parallelogram |
