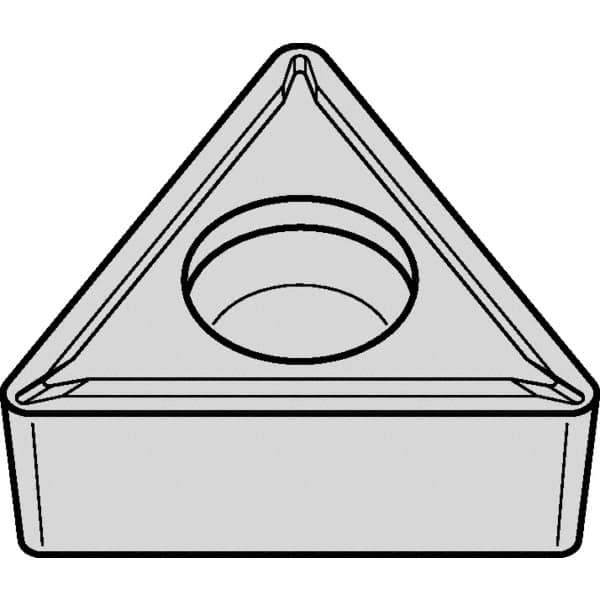

Kennametal - TCMT3253 LF Grade KCP10B Carbide Turning Insert - TiOCN Finish, 60° Triangle, 3/8" Inscr Circle, 0.1563" Thick, 3/64" Corner Radius
Item #: 47451406
Brand: Kennametal
Model #: 6136780
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 3253 |
| Material | Carbide |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 3/64 |
| Manufacturer's Grade | KCP10B |
| Coating | TiOCN |
| Chip Breaker | LF |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Shape | Triangle |
