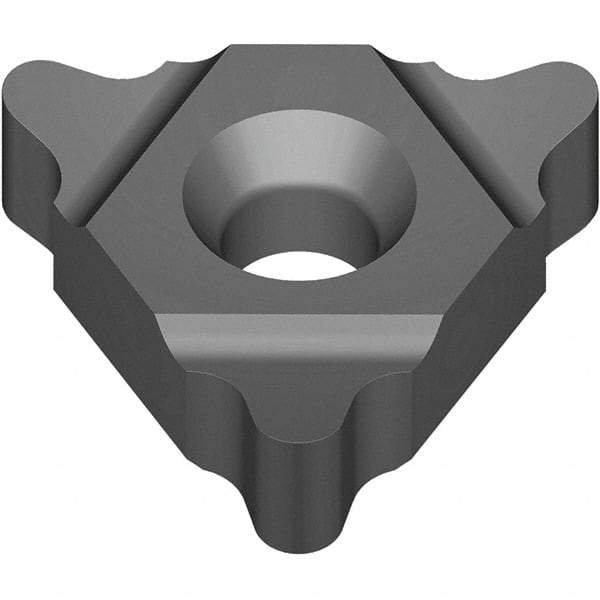

Vargus - 4UEI0.500 Grade VK2P, Internal/External Partial 60 Threading Insert - 5.5 to 8mm & 4-1/2 to 3-1/4 TPI Ext Pitch, 5.5 to 8mm & 4-1/2 to 3-1/4 TPI Int Pitch, Uncoated, Carbide
Item #: 47466313
Brand: Vargus
Model #: 59420
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 4UEI |
| Insert Size | 0.500 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand; Left Hand |
| Thread Standard | Partial 60 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VK2P |
| Internal Pitch/TPI | 5.5-8.0 mm; 4.5-3.25 TPI |
| External Pitch/TPI | 5.5-8.0 mm; 4.5-3.25 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Series | U Style |
| Manufacturers Catalog Number | 4UEIU60 VK2P |
