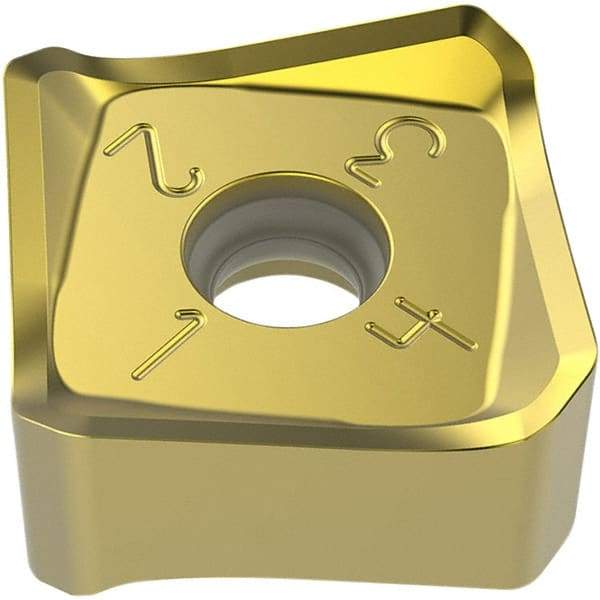

Seco - SNMX2209 ME12 Grade F40M Carbide Milling Insert - TiAlN Finish, 8.81mm Thick, 22mm Inscribed Circle, 2mm Corner Radius
Item #: 47485172
Brand: Seco
Model #: 03166968
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMX |
| Insert Size | 2209 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | F40M |
| Coating | TiAlN |
| Width (mm) | 22.00 |
| Width (Decimal Inch) | 0.8700 |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8700 |
| Inscribed Circle (mm) | 22.00 |
| Inscribed Circle (Decimal Inch) | 0.8700 |
| Thickness (mm) | 8.81 |
| Thickness (Decimal Inch) | 0.3500 |
| Corner Radius (Decimal Inch) | 0.0800 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 20 |
| Rake | Neutral |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | ME12 |
